Pneumatic Marking Machine
What Is A Pneumatic Marking Machine?
A Pneumatic Marking Machine, also known as a Dot Peen Marking Machine, is an industrial permanent marking system that uses compressed air to drive a carbide marking pin and create precise dot-shaped marks on metal surfaces.
Unlike laser marking systems, pneumatic marking creates physical indentations by impacting the material surface. The marking result is permanent, durable and highly resistant to harsh industrial environments.
Because of its excellent reliability and low operating cost, pneumatic marking machines are widely used in:
- Automotive manufacturing
- Mechanical engineering
- Steel fabrication
- Tool manufacturing
- Heavy equipment industries
- Metal component production
A professional pneumatic dot peen marker can mark: serial numbers, VIN codes, QR codes, barcodes, logos, dates and production information.
Why Choose Pneumatic Marking Technology?
Many industrial products require permanent identification that can survive extreme working conditions.Traditional labels or ink printing may fade, while pneumatic marking creates deep physical marks directly into the material.
Permanent Marking
Physical indentation remains readable for the entire product lifetime.
Low Operating Cost
No ink, no chemicals, minimal maintenance requirements.
Heavy Industry Suitable
Designed for steel, machinery and automotive applications.
Working Principle Of Pneumatic Marking Machine
How Does A Pneumatic Marking Machine Work?
A pneumatic marking machine operates through compressed air technology.The system controls a marking pin moving at high frequency, creating a series of dots that form characters and graphics.
01. Air Pressure Generation
Compressed air provides the power source for the marking impact.
02. Pin Movement Control
The controller adjusts marking speed and depth.
03. Dot Formation
The carbide pin creates precise dot patterns.
04. Permanent Identification
The final mark withstands wear and harsh environments.
Core Advantages Of Pneumatic Marking Machine
01. Deep Permanent Marking
Creates physical marks that remain visible after painting, rust and harsh environments.
02. Excellent Metal Compatibility
Suitable for steel, aluminum, iron and hard alloys.
03. Low Maintenance
Simple mechanical structure with long service life.
04. Cost Effective Solution
Lower investment compared with laser marking systems.
05. Industrial Reliability
Designed for factories with continuous operation.
06. Easy Integration
Can integrate with production lines and automation systems.
Pneumatic Marking Machine Technical Specifications
| Parameter | Specification |
|---|---|
| Marking Technology | Dot Peen Impact Marking |
| Marking Material | Metal and Hard Plastics |
| Marking Speed | 2-8 Characters/Second |
| Marking Depth | 0.1-1mm (Depending on Material) |
| Compressed Air Pressure | 0.2-0.7MPa |
| Control System | Industrial Digital Controller |
Materials That Can Be Marked
Materials Compatible With Pneumatic Marking Machine
01. Stainless Steel
Automotive parts, equipment, medical components.
02. Carbon Steel
Machine parts, tools, industrial components.
03. Aluminum
Lightweight components, electronic housings.
04. Brass & Copper
Electrical and mechanical parts.
05. Hardened Metal
Tools, molds, precision parts.
06. Engineering Plastic
ABS, nylon, industrial plastics.
Applications Of Pneumatic Marking Machine
Pneumatic marking machines are widely used in industries that require permanent identification, traceability and anti-counterfeiting marking.Because dot peen marking creates deep physical marks, it is especially suitable for harsh industrial environments.

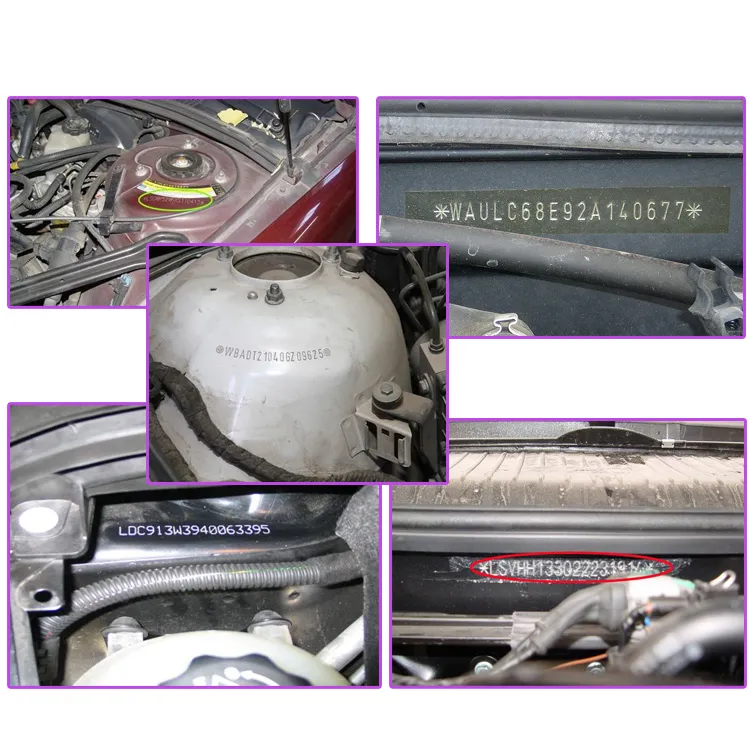

01. Automotive Industry
Automotive manufacturers use pneumatic marking machines for:
✓ Engine serial numbers
✓ Chassis components
✓ Transmission parts
✓ Vehicle identification codes
✓ Metal nameplates
Advantages:
Permanent traceability
throughout the vehicle lifetime.
02. Machinery Manufacturing
Applications include:
✓ Machine frames
✓ Mechanical parts
✓ Hydraulic components
✓ Industrial equipment
Pneumatic marking ensures
clear identification in factories.
03. Metal Fabrication
Used for:
✓ Steel plates
✓ Metal structures
✓ Custom fabricated parts
Deep marks remain visible
after painting or surface treatment.
04. Tool Manufacturing
Suitable for:
✓ Cutting tools
✓ Hand tools
✓ Measuring equipment
Used for product identification
and quality management.
05. Aerospace Components
Applications:
✓ Aircraft components
✓ Precision metal parts
✓ Safety identification
Provides permanent marking
for critical components.
06. Hardware Products
Used for:
✓ Bearings
✓ Fasteners
✓ Bolts
✓ Metal accessories
Improves product tracking
and management.
Pneumatic Marking Machine For Metal Traceability
Modern manufacturing requires complete product traceability.Manufacturers need to identify:
- Production batches
- Manufacturing dates
- Serial numbers
- Component information
- Quality inspection records
A pneumatic dot peen marking machine provides a reliable identification method by permanently engraving information directly into metal surfaces.
Common Marking Contents:
Serial Number
Permanent product identification for industrial management.
VIN Code
Vehicle identification and anti-counterfeiting.
QR Code
Digital information tracking for smart manufacturing.
Logo Marking
Brand identification on metal products.
Pneumatic Marking Machine VS Laser Marking Machine
Which Marking Technology Is Better?
| Comparison | Pneumatic Marking Machine | Laser Marking Machine |
|---|---|---|
| Marking Method | Physical dot impact | Laser engraving |
| Material Depth | Deep indentation | Surface engraving |
| Metal Marking | Excellent | Excellent |
| Operating Cost | Very Low | Low |
| Consumables | Marking pin replacement | Almost none |
| Best Application | Heavy industrial parts | Precision marking |
| Initial Investment | Lower | Higher |
Why Choose Pneumatic Marking System?
No Ink Required
Compared with ink printing, pneumatic marking eliminates consumable costs.
Weather Resistant
Marks remain readable under heat, oil and harsh conditions.
Long Service Life
Simple mechanical structure provides reliable operation.
Easy Operation
Operators can quickly learn the marking process.
Flexible Installation
Suitable for standalone machines and production lines.
Industrial Reliability
Designed for continuous factory operation.
Pneumatic Marking Machine Software System
Modern pneumatic marking systems use digital controllers to simplify operation and improve production efficiency.
Graphic Design
Create text, numbers, logos and codes easily.
Automatic Numbering
Automatically generate serial numbers for production tracking.
Data Storage
Save frequently used marking files.
Parameter Control
Adjust:
Speed
Depth
Marking force
Multiple Languages
Suitable for global customers.
Easy Operation
Simple interface for industrial workers.
Automation Integration Solutions
For large-scale manufacturing, pneumatic marking systems can be integrated into automated production environments.
Production Line Integration
Automatic marking during assembly process.
Robot Integration
Suitable for robotic manufacturing systems.
Custom Fixtures
Customized positioning solutions for different products.
Why Choose Our Pneumatic Marking Machine?
Choosing a reliable Pneumatic Marking Machine Manufacturer is important for long-term production stability.We provide industrial dot peen marking solutions with professional manufacturing experience, strict quality control and customized services.
01. Professional Manufacturing Experience
We focus on industrial marking equipment and provide reliable solutions for global customers.
02. Factory Direct Supply
Direct factory supply helps customers reduce purchasing costs and improve communication efficiency.
03. Strict Quality Inspection
Every pneumatic marking machine is tested before shipment to ensure stable performance.
04. Customized Solutions
We provide customized marking solutions according to product size, material and production requirements.
05. Global Export Experience
Supporting international customers with professional service, technical communication and documentation.
06. Complete Technical Support
Provide installation guidance, operation training and after-sales support.
Quality Control Of Pneumatic Marking Machine
Industrial marking equipment requires stable performance because it is often used in continuous production environments.Our quality control process focuses on:
01. Component Inspection
Check key components including:
Controller
Marking pin
Pneumatic system
Electrical components
02. Assembly Testing
Ensure every machine is assembled correctly before testing.
03. Marking Performance Test
Test:
Marking depth
Character clarity
Position accuracy
04. Long-Time Operation Test
Verify machine stability under continuous working conditions.
05. Packaging Protection
Professional packaging for safe international transportation.
06. Final Customer Inspection
Confirm machine quality before delivery.
Customized Pneumatic Marking Solutions
Different industries have different marking requirements.We provide customized solutions according to:
- Product dimensions
- Material hardness
- Marking content
- Production speed
- Automation requirements
Large Component Marking
Suitable for:
Heavy machinery
Steel structures
Large metal parts
Automotive Traceability Solution
For:
VIN codes
Engine numbers
Component tracking
Deep Metal Engraving Solution
For products requiring long-lasting identification.
Portable Dot Peen Solution
Flexible marking for different production areas.
Production Line Integration
Connect with automated manufacturing systems.
Special Material Solution
Optimize parameters for different hardness levels.
How To Choose The Right Pneumatic Marking Machine?
Pneumatic Marking Machine Buying Guide
Selecting the correct Dot Peen Marking Machine depends on your application, product material and production requirements.
Step 1: Confirm Your Marking Material
| Material | Recommended Solution |
|---|---|
| Carbon Steel | Standard Pneumatic Marking Machine |
| Stainless Steel | High Force Dot Peen Marker |
| Aluminum | Adjustable Impact Pneumatic Marker |
| Hardened Metal | Heavy Duty Pneumatic Marking System |
Step 2: Choose Marking Area
Small Parts
Suitable for:
Small components
Hardware
Electronic metal parts
Medium Components
Suitable for:
Automotive parts
Machine components
Large Components
Suitable for:
Steel structures
Heavy equipment
Step 3: Consider Production Requirements
For high-volume manufacturing, choose:
- Automatic feeding system
- Production line integration
- Barcode and QR code marking
- Custom fixtures
Pneumatic Marking Machine Application
Why Pneumatic Marking Machine Is Still Popular In Modern Manufacturing?
Although laser marking technology is developing rapidly, pneumatic dot peen marking remains an important solution for industries requiring deep, permanent and economical identification.
Heavy Industry Friendly
Perfect for machines, steel parts and industrial components.
Low Investment
Affordable solution for permanent marking.
Reliable Performance
Stable operation under harsh environments.
Easy Maintenance
Simple structure reduces maintenance costs.
Permanent Identification
Marks remain readable for product lifetime.
Wide Industrial Use
Used worldwide in manufacturing.
Pneumatic Marking Machine FAQ
Frequently Asked Questions About Pneumatic Marking Machine
What is a Pneumatic Marking Machine?
A Pneumatic Marking Machine is an industrial marking system that uses compressed air to drive a carbide marking pin and create permanent dot marks on metal surfaces.It is also called a Dot Peen Marking Machine or Pneumatic Dot Peen Marker.
How does a pneumatic marking machine work?
The machine uses compressed air pressure
to move a marking needle at high frequency.The needle impacts the material surface
and creates a series of small dots.These dots form:
• Letters
• Numbers
• Logos
• QR codes
• Serial numbers
The marking becomes a permanent identification.
What materials can a pneumatic marking machine mark?
Pneumatic marking machines are mainly designed
for metal materials including:
✓ Stainless steel
✓ Carbon steel
✓ Aluminum
✓ Brass
✓ Copper
✓ Titanium
✓ Hardened metal
✓ Engineering plastics
What is the difference between pneumatic marking and laser marking?
The main difference is the marking method.
Pneumatic marking:
• Creates physical indentation
• Suitable for deep permanent marks
• Lower equipment cost
• Ideal for heavy industrial parts
Laser marking:
• Uses laser energy
• Creates high precision surface marks
• Suitable for fine graphics
• Better for small electronic components
Can pneumatic marking machines mark stainless steel?
Yes.Stainless steel is one of the most common materials
for pneumatic dot peen marking.Applications include:
• Automotive parts
• Industrial equipment
• Metal nameplates
• Mechanical components
Can pneumatic marking machines create QR codes?
Yes.Modern dot peen marking machines can create:
✓ QR codes
✓ Data Matrix codes
✓ Barcodes
✓ Serial numbers
✓ Product tracking information
for industrial traceability.
How deep can a pneumatic marking machine mark?
The marking depth depends on:
• Material hardness
• Air pressure
• Marking needle
• Machine configuration
Generally, dot peen marking depth can reach approximately:
0.1mm-1mm
depending on application requirements.
What is the marking speed of a pneumatic dot peen marker?
Typical marking speed depends on character size,
material and marking content.Industrial systems can usually achieve:
2-8 characters per second
for standard serial number marking.
Does pneumatic marking require consumables?
The system does not require:
✓ Ink
✓ Chemicals
✓ Printing materials
The main consumable component
is the marking pin,
which has a long service life.
Is pneumatic marking suitable for automotive manufacturing?
Yes.Automotive manufacturers widely use pneumatic marking systems
for permanent identification of:
• Engine components
• Gearbox parts
• Chassis components
• Vehicle identification numbers
• Safety-related parts
Can pneumatic marking machines be integrated into production lines?
Yes.Industrial pneumatic marking systems can integrate with:
• Assembly lines
• Robot systems
• Automatic fixtures
• PLC control systems
What air pressure does a pneumatic marking machine need?
Most industrial pneumatic marking machines operate within: 0.2-0.7MPa compressed air pressure depending on material hardness and marking depth.
Is pneumatic marking environmentally friendly?
Yes.Compared with ink printing,
pneumatic marking does not generate:
• Ink waste
• Chemical pollution
• Printing consumables
It is suitable for clean manufacturing environments.
What industries use pneumatic marking machines?
Main industries include:
✓ Automotive
✓ Machinery manufacturing
✓ Aerospace
✓ Hardware
✓ Metal fabrication
✓ Industrial equipment
How To Select The Right Dot Peen Marking Machine
Before purchasing a pneumatic marking system, customers should consider several important factors.
1. Product Material
Different materials require different impact force.
| Material | Recommended Configuration | Application |
|---|---|---|
| Aluminum | Standard Impact Force | Electronic parts, nameplates |
| Stainless Steel | Medium/High Impact Force | Automotive components |
| Hardened Steel | Heavy Duty System | Tools and molds |
| Large Steel Parts | Industrial Pneumatic Marker | Machinery manufacturing |
2. Marking Content
Choose the correct system according to marking requirements:
Text Marking
Serial numbers, production codes, dates.
Logo Marking
Brand identification and product labeling.
Code Marking
QR codes, barcodes, traceability information.
3. Production Environment
Consider:
- Manual operation or automatic production
- Product size
- Marking frequency
- Factory space
- Future automation requirements
