AUTOMOTIVE BRAKE PART MARKING

Fiber laser marking is a practical solution for many metal brake components, including brake discs, brake calipers, brake drums and other automotive braking parts. Typical markings include serial numbers, part numbers, Data Matrix codes, QR codes, production information and logos. For steel, cast iron and many aluminum brake components, a 1064 nm pulsed fiber laser is usually the first technology we would evaluate. The final system, however, should be selected from the actual part material, surface condition, marking depth, geometry, code size and required production cycle time.

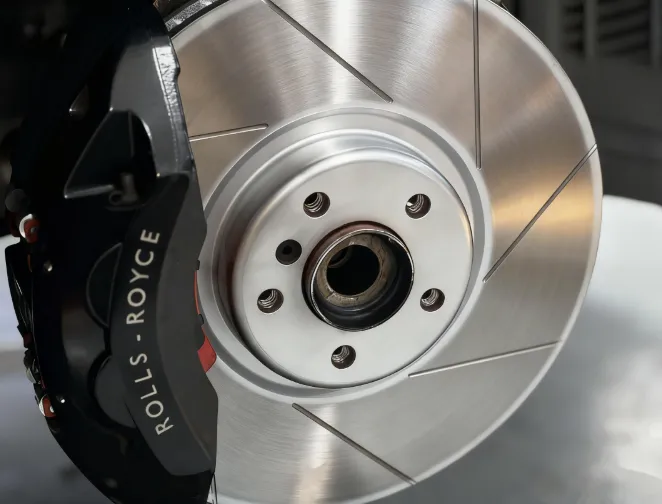

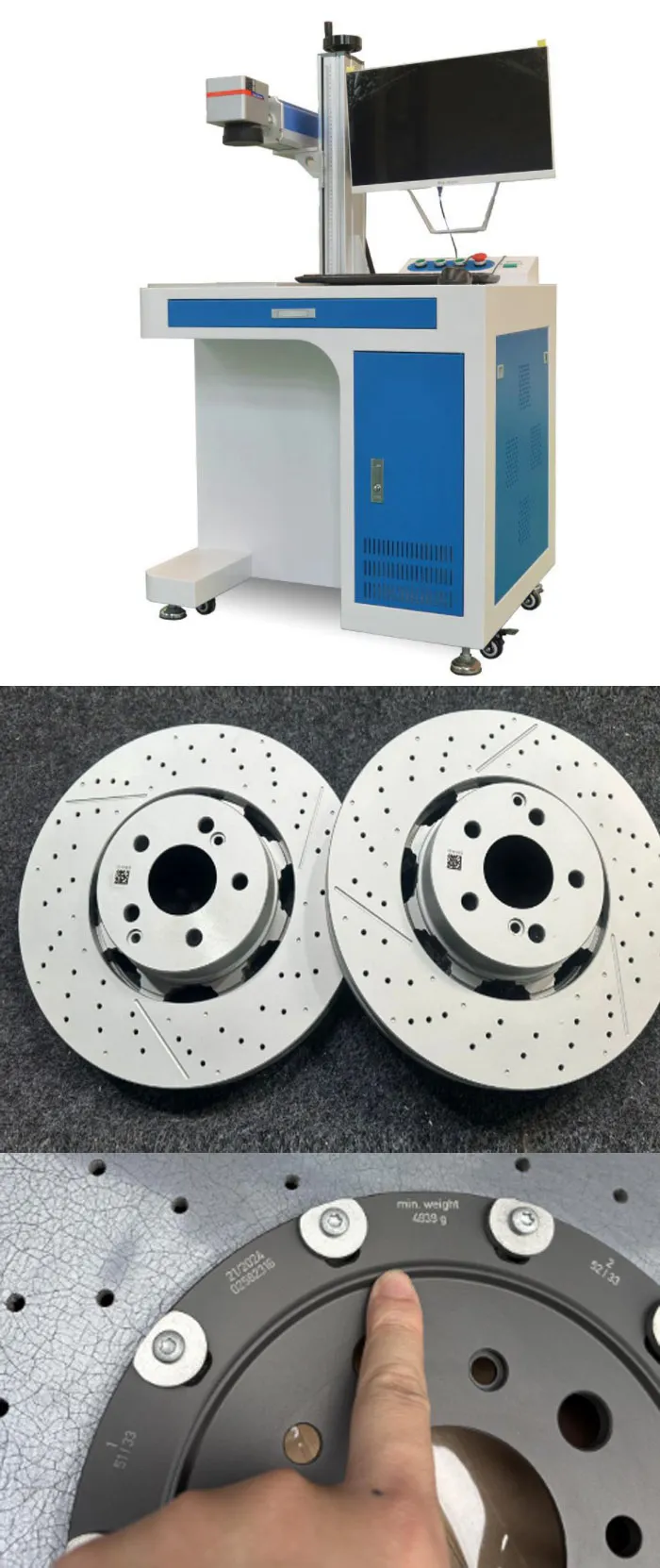

Fiber laser marking brake discs and automotive brake parts
LEO - JQ Laser Sales Engineer
LEO — JQ Laser Sales Engineer

LEO, JQ Laser sales engineer, with 10+ years in laser marking, cross-industry application experience, automation marking project design/implementation.

Can Brake Parts Be Marked with a Fiber Laser?

Yes. Fiber laser marking can be used on many metal brake components, including brake discs, brake calipers, brake drums, brackets and other automotive braking parts. The most common purpose is permanent identification and traceability rather than decoration. Manufacturers may mark serial numbers, part numbers, Data Matrix codes, production dates, batch information or logos directly onto the component. For steel, cast iron and suitable aluminum components, a 1064 nm pulsed fiber laser is normally a strong starting point. The exact laser power and marking process should still be determined through testing because brake parts can have different coatings, heat treatments, surface finishes, geometries and durability requirements.

laser marking machine for brake parts

What Brake Parts Can Be Laser Marked?

Brake systems contain components with very different shapes and operating conditions. The marking process should therefore be designed around the actual component and its production route.

Brake Discs / Rotors

Mark identification codes, part numbers, production information or other required markings on suitable areas of brake discs and rotors.

Brake Calipers

Apply serial numbers, Data Matrix codes, part identification and logos to suitable areas of aluminum or iron brake calipers.

Brake Drums

Mark identification and traceability information on compatible cast-iron brake drums after confirming the surface and required marking depth.

Brake Brackets

Small steel components and brackets can be marked with serial numbers, part numbers or assembly identification.

Brake Components

Depending on material and geometry, additional braking-system components can be marked for manufacturing and traceability purposes.

Brake System Identification

Laser marking can create permanent identification that supports production control, quality management and aftermarket traceability.

What Information Is Usually Marked on Brake Parts?

Brake part marking is normally connected with identification, traceability, quality control and manufacturing records. The exact marking content depends on the customer’s production and quality requirements.

Serial Numbers

Unique identification for individual brake components or production units.

Part Numbers

Permanent identification of component type, model or engineering specification.

Data Matrix Codes

Compact 2D identification for production traceability and machine-readable records.

QR Codes

Used when the application requires a larger 2D code and sufficient marking space is available.

Production Information

Batch numbers, production dates, shift information or manufacturing-line identification.

Logos and Brand Marks

Permanent manufacturer or product identification where the component design allows it.

Laser Marking Brake Discs and Rotors

Brake discs require more consideration than a simple flat metal marking job. The available marking location, disc geometry, surface finish, coating, required depth and production handling all influence the machine configuration.

Depending on the application, identification can be placed on a suitable non-friction area such as the disc hat or another specified surface. Some specialized applications may also require controlled engraving or wear-related marking on the braking surface. These are different processes and should not be treated as the same application.

Part Identification

Serial numbers, part numbers and production information can be marked on an approved identification area.

Data Matrix

Compact machine-readable codes can support automated traceability when the surface and code dimensions are suitable.

Special Wear Marking

Certain advanced brake-disc applications use controlled laser engraving to create visible wear indicators. This requires a dedicated process study rather than a standard identification setup.

Laser Marking Brake Calipers

Brake calipers are often easier to approach than large brake discs, but their geometry can still create challenges. Cast surfaces, curved housings, ribs and recessed areas may affect the focal position and fixture design.

For example, a brake caliper may require a serial number and Data Matrix code on a specific flat or slightly curved surface. The machine should be configured around the actual marking area instead of assuming that the standard 110 × 110 mm field is automatically suitable.

Things to check before selecting the machine

  • Caliper dimensions and weight
  • Marking surface shape
  • Paint, coating or anodizing
  • Required code size
  • Required marking depth
  • Part positioning repeatability
  • Required production quantity
  • Whether code verification is required

Common Brake Part Materials

Material Typical Brake Application Possible Laser Approach Sample Test
Cast Iron Brake discs and drums Surface marking or deeper engraving depending on requirement Recommended
Carbon / Alloy Steel Brackets and components Annealing, engraving or etching depending on surface Recommended
Aluminum Brake calipers and housings Surface engraving or contrast marking Recommended
Coated / Painted Metal Various brake components Coating removal or controlled surface marking depending on specification Essential

The material name alone does not determine the final laser parameters. Alloy composition, casting condition, hardness, coating, heat treatment and surface finish can all affect the marking result.

Which Laser Is Suitable for Brake Parts?

For conventional metal brake components, fiber laser is normally the first technology to evaluate. MOPA fiber can be considered when more flexible pulse control is useful. UV and CO₂ lasers are generally application-specific rather than the default choice for metal brake discs and calipers.

Laser Typical Strength Brake Application
Fiber Laser Metal marking and engraving Brake discs, calipers, drums and many steel components
MOPA Fiber More flexible pulse control Specialized surface effects and controlled processing requirements
UV Laser Fine, lower-heat marking Selected coatings, plastics or sensitive components rather than typical cast-iron discs
CO₂ Laser Organic and non-metal materials Generally not the first choice for metal brake components

20W, 30W, 50W, 60W or 100W for Brake Parts?

Power should be selected from the required marking process, depth and production rate. A higher wattage is not automatically the best choice.

Power Typical Position When to Consider It
20W Standard identification Serial numbers, logos, part numbers and lighter marking requirements
30W General production A practical general-purpose option when production volume is higher
50W Faster processing / deeper marking Deeper engraving or increased production requirements
60W Higher production demand Applications requiring additional processing capacity
100W Industrial / deep processing High-volume production or demanding deeper engraving applications
Important:Maximum scanner speed is not the same as production cycle time. Actual throughput also includes part loading, positioning, marking, verification and unloading.

Typical Fiber Laser Configuration for Brake Parts

Laser Source Raycus, JPT, MAX or other qualified fiber laser configurations depending on the project
Wavelength 1064 nm typical for pulsed fiber laser marking
Power Options 20W / 30W / 50W / 60W / 100W
Standard Marking Field 110 × 110 mm typical
Optional Fields 150 / 175 / 200 / 300 mm depending on lens and application
Marking Speed Up to approximately 7,000 mm/s under suitable conditions
Cooling Air cooling is common for standard fiber configurations
Software EZCAD2 / compatible marking control system depending on configuration
Automation Rotary axis, custom fixture, pneumatic clamping, PLC, sensors, encoder and vision inspection can be considered

Data Matrix Marking for Brake Part Traceability

Data Matrix is useful when a brake component needs a compact machine-readable identity. Automotive manufacturers and suppliers use 2D codes and serial numbers to connect physical components with manufacturing and quality records. The marking system itself, however, is only one part of the traceability process. The code must be generated correctly, marked consistently and verified.

Typical Brake Part Traceability Workflow

Part Data→Laser Marking→Code Reading→Quality Check→Production Record

If automated verification is required, a vision or code-reading system can be integrated into the marking station. The exact reader, code grading method and acceptance criteria should be defined according to the customer’s production and quality requirements.

Do Brake Parts Need a Rotary Axis?

Not necessarily. A rotary axis is useful when the marking position follows a cylindrical or circumferential surface, but a fixed fixture may be the better solution when the required marking area is flat and consistently accessible.

Part / Surface Possible Setup Main Consideration
Flat identification area Fixed fixture Repeatable positioning
Disc circumference / hat Rotary or automated positioning Diameter, circumference and marking length
Complex curved surface Customized fixture or 3D optical solution Focal-height variation
High-volume production Automated handling Takt time, sensor, PLC and inspection
SPECIALIZED APPLICATION

Brake Disc Wear Marking: A Different Application

Brake disc wear marking should not be confused with normal part identification. In a specialized process, controlled laser engraving can create a physical wear indicator whose depth or geometry changes as the brake surface wears. Trotec has publicly documented brake-disc applications using laser-generated wear marks for visual wear monitoring and has also published production examples involving deep engraving and automated inspection. :chatgpt-content-reference{index=”2″}

Important Procurement Note

This is a specialized engineering application. If your project is specifically related to brake-disc wear indicators, do not purchase a standard 20W or 30W marking machine based only on a catalog specification. The required depth, geometry, cycle time, material, surface condition and inspection method should be validated with actual brake-disc samples.

Manual, Rotary or Inline Brake Part Marking?

Configuration Suitable For Main Consideration
Manual Fixture Low to medium production Simple loading and unloading
Rotary Fixture Cylindrical or circumferential marking Part diameter and marking location
Pneumatic Fixture Repetitive production Consistent positioning and clamping
Inline Automation High-volume automotive production Takt time, PLC, sensors, data input and inspection

A high-speed laser scanner does not automatically make a high-throughput production line. The complete cycle includes part arrival, positioning, laser processing, code verification and part release.

Brake Part Sample Testing Before Machine Selection

For brake components, testing the actual finished part is much more useful than selecting a laser only from the advertised wattage.

01

Receive actual brake part

02

Confirm material and surface

03

Test laser parameters

04

Check readability and depth

05

Confirm cycle time

What Should Be Confirmed?

  • Marking contrast and appearance
  • Data Matrix / QR readability if required
  • Required marking depth
  • Surface damage or unwanted thermal effects
  • Marking position and repeatability
  • Actual laser processing time
  • Fixture loading time
  • Inspection time
  • Compatibility with downstream processes

What Should You Tell a Laser Marking Machine Supplier?

If you are requesting a quotation for brake-part marking, do not send only the words “30W laser marking machine for brake discs.” A supplier needs enough information to evaluate the laser, lens, fixture and automation requirements.

Information Why It Matters
Part photos or drawings Determines marking access and fixture design
Material and alloy Determines the laser-material interaction
Surface treatment Paint, coating, heat treatment and machining condition can change the result
Marking content Text, serial number, Data Matrix, QR code or logo changes the processing requirement
Marking depth Surface marking and deep engraving require different processing strategies
Parts per hour Helps determine power and automation requirements
Production integration Determines fixture, sensor, PLC, data and inspection requirements

JQ Laser Reference Configuration for Brake Parts

Laser Type Pulsed Fiber Laser
Power Options 20W / 30W / 50W / 60W / 100W
Wavelength 1064 nm
Standard Field 110 × 110 mm typical
Larger Fields 150 / 175 / 200 / 300 mm depending on lens and application
Marking Speed Up to approximately 7,000 mm/s under suitable conditions
Control EZCAD2 / compatible marking system
Optional Integration Rotary axis, custom fixture, pneumatic clamping, PLC, sensors, encoder and vision inspection

JQ Laser Factory & Automotive Application Support

Jining Junqi Intelligent Technology Co., Ltd. (JQ Laser) was established in 2011 in Qufu, Jining, Shandong, China. Our work covers laser marking equipment, application testing, machine assembly, OEM/ODM projects and customized marking automation.

Sample Testing

Customers can provide actual brake discs, calipers or other components for application testing before final machine selection.

OEM / ODM

Machine configuration, appearance, marking area, accessories, automation and documentation can be evaluated for suitable projects.

Quality Control

Machine configuration, software operation and application marking requirements are checked before shipment.

After-Sales Support

Remote technical support, parameter guidance, troubleshooting, software assistance and spare-parts support are available.

Lead Time, MOQ and Spare Parts

  • Typical 30W fiber laser production: approximately 5–7 working days after order confirmation.
  • MOQ: depends on machine configuration, customization, packaging and OEM/ODM requirements.
  • Spare parts: application-related spare parts and commonly replaceable components can be discussed according to the selected machine configuration.
  • OEM / ODM: available for suitable projects involving machine configuration, appearance, branding, automation or documentation.

Final lead time should be confirmed in the quotation because customized fixtures, automation and special components may require additional engineering time.

6 Common Mistakes When Buying a Brake Part Marking Machine

1. Choosing the Machine Only by Wattage

A 50W or 100W machine is not automatically better. The correct power depends on the required marking process, depth and cycle time.

2. Ignoring Surface Treatment

Painted, coated, heat-treated and machined surfaces can produce very different laser results.

3. Testing a Different Material

A successful test on ordinary steel does not prove that the finished brake disc or caliper will produce the same result.

4. Measuring Only Laser Speed

Production cycle time includes loading, positioning, marking, verification and unloading.

5. Ignoring Code Verification

A visually dark Data Matrix code is not necessarily a reliably readable code. Actual scanning should be part of the acceptance process when required.

6. Confusing Identification with Wear Marking

Normal part identification and specialized brake-disc wear marking have very different process requirements.

Brake Parts Laser Marking FAQ

Can a fiber laser mark brake discs?

Yes. Fiber lasers can be evaluated for many metal brake discs and rotors. The suitable marking area, depth and parameters depend on the disc material, surface condition and application requirements.

Can a fiber laser mark brake calipers?

Yes. Aluminum and iron brake calipers can be suitable for fiber laser marking after confirming the material, coating, geometry and required marking quality.

Can I mark Data Matrix codes on brake parts?

Yes. Data Matrix codes can be used for compact automotive part identification and traceability when the code size, surface and marking process allow reliable decoding.

Is 30W enough for brake parts?

30W can be suitable for many identification applications. Higher power may be considered when deeper engraving or higher production throughput is required. Actual brake-part testing should determine the final configuration.

What laser power is best for brake discs?

There is no universal power recommendation. The correct choice depends on whether the requirement is surface identification, deeper engraving, special wear marking or high-volume production. Sample testing is recommended.

Can brake-disc marking be automated?

Yes. Depending on the production process, automated systems can include fixtures, rotary positioning, sensors, PLC communication, data input and code or vision inspection.

Does brake-disc marking require a rotary axis?

Not always. A rotary or automated positioning system may be useful for circumferential or curved marking, while a fixed fixture may be sufficient for a defined flat marking area.

Can laser marking be used for brake-disc wear indicators?

Specialized laser wear-marking processes exist, but this is different from normal part identification. The required depth, geometry, material, cycle time and inspection process should be engineered and validated using actual brake-disc samples.

What should I send for a brake-part marking quotation?

Send part photos or drawings, material, surface treatment, marking content, code size, required depth, marking location, parts per hour and information about manual or automated production.

Send Us Your Brake Part for a Marking Evaluation

Comparing 20W, 30W, 50W or 100W fiber laser systems? Do not choose the machine from wattage alone. Send us your brake disc, caliper or other brake component information together with the material, marking content and production requirement. We can evaluate the marking process, fixture requirements and suitable machine configuration before you purchase.
