MOPA Laser Marking Machine
More control over pulse width and frequency for applications that require fine marking, black marking, anodized aluminum processing or specialized metal surface effects.
MOPA is not automatically better than a standard fiber laser. Its main advantage is a wider process window, allowing engineers to adjust laser parameters for applications where a conventional fiber source may be less flexible.
20W / 30W / 50W MOPA configurations available. Final configuration should be confirmed before ordering.
Typical MOPA Fiber Laser Marking Machine Price
Typical FOB reference range based on common configurations. Actual quotation depends on machine configuration and trade terms.
Price depends on laser source, marking area, rotary axis, enclosure, automation, exhaust/filter system and shipping terms.
Price ranges are market/typical FOB references for comparison, not a guaranteed quotation.
Table of Contents
What Is A MOPA Laser Marking Machine?
A MOPA Laser Marking Machine is an advanced fiber laser marking system that uses Master Oscillator Power Amplifier (MOPA) technology to provide precise control of laser pulse width.
Compared with traditional fiber laser marking machines, MOPA laser technology allows operators to adjust:
- Pulse width
- Frequency range
- Laser energy distribution
- Marking color effect
This unique technology makes MOPA laser one of the best solutions for applications requiring:
- Color marking on stainless steel
- Black marking on anodized aluminum
- Fine electronic component marking
- High contrast plastic marking
- Precision industrial identification
A MOPA Fiber Laser Marking Machine provides higher flexibility than standard fiber lasers, especially for industries requiring premium appearance and precise surface processing.
Why Choose a MOPA Fiber Laser?
The practical advantage of MOPA is parameter flexibility. It allows engineers to work with different pulse and frequency settings when developing a specific marking process.
Black Marking
MOPA is commonly considered when customers need controlled black marking on stainless steel and other suitable metals.
Fine Metal Marking
Additional pulse control can be useful for fine graphics, small text and applications where heat input needs to be managed.
Anodized Aluminum
MOPA configurations are commonly used for removing anodized layers and producing high-contrast product identification.
Our recommendation: If you only need ordinary serial numbers, QR codes and logos on common metal parts, a standard fiber laser may already be sufficient. If you need black marking, specialized surface effects, anodized aluminum processing or more control over the thermal effect, MOPA becomes more relevant.
MOPA Laser Source Specifications
The following values are based on commonly referenced JPT MOPA configurations. The exact laser source model should be confirmed on the quotation and nameplate before purchase.
| Power | Typical Source | Wavelength | Frequency | Pulse Width |
|---|---|---|---|---|
| 20W | JPT YDFLP-C-20-M7-S-R | 1064 nm | 1–4000 kHz | Approx. 2–350 ns* |
| 30W | JPT YDFLP-E-30-M7-S-R | 1064 nm | 1–4000 kHz | Approx. 2–350 ns |
| 50W | JPT M7 50W/60W series | 1064 nm | Commonly 1–4000 kHz* | Approx. 2–500 ns* |
Important: Frequency and pulse-width ranges depend on the exact MOPA source model and controller configuration. Do not treat the maximum published range as the same as the process settings used for every material.
When Does MOPA Make More Sense Than Standard Fiber?
The main reason to choose MOPA is not simply higher power. It is the additional control over laser pulse characteristics, which can be useful for applications that require a narrower process window or a specific surface effect.
Color Marking on Stainless Steel
MOPA can provide more control over pulse-related parameters, which can be useful when developing controlled color or annealing effects on stainless steel.
Fine & Detailed Marking
For small text, fine graphics and applications where heat input needs to be carefully controlled, MOPA gives the engineer more process parameters to work with.
Specialized Metal Applications
Certain aluminum, stainless steel and other metal applications can benefit from the additional flexibility of a MOPA source.
Our practical advice: If your application is simple black marking on common metals, a standard fiber laser may already be enough. We normally recommend MOPA when the application actually benefits from additional pulse control.
Why MOPA Laser Technology Is Different?
Adjustable Pulse Width Technology Advantage
Why Choose MOPA Fiber Laser Technology?
The biggest difference between MOPA laser and traditional fiber laser is the ability to independently control laser pulse duration.
| Feature | Standard Fiber Laser | MOPA Fiber Laser |
|---|---|---|
| Pulse Width Control | Fixed | Adjustable |
| Color Marking Stainless Steel | Limited | Excellent |
| Black Marking Aluminum | Difficult | Excellent |
| Plastic Marking | Good | Better control |
| Fine Electronic Components | Good | Higher precision |
20W vs 30W vs 50W MOPA Laser Marking Machine
The right wattage depends on the marking process, required production speed, material and depth — not simply on the highest available power.
| Specification | 20W MOPA | 30W MOPA | 50W MOPA |
|---|---|---|---|
| Typical Marking Area |
110×110 mm Optional 150/175/200/300 mm |
110×110 mm Optional 150/175/200/300 mm |
110×110 / 150×150 / 200×200 / 300×300 mm |
| Typical Galvo Speed | Up to about 7000 mm/s* | Up to about 7000 mm/s* | About 7000–12000 mm/s* |
| Typical Minimum Line Width | Approx. 0.01–0.02 mm | Approx. 0.01–0.02 mm | Approx. 0.01–0.02 mm |
| Typical Minimum Character | Approx. 0.1–0.2 mm | Approx. 0.1–0.2 mm | Approx. 0.15–0.2 mm |
| Typical FOB Reference | USD 1,300–2,400 | USD 1,600–2,800 | USD 2,200–4,800 |
| Typical Applications | Fine marking, black marking, anodized aluminum | General industrial marking, higher production throughput | Higher throughput, deeper engraving, industrial metal applications |
Working Principle Of MOPA Laser Marking Machine
MOPA laser technology uses a two-stage laser amplification system:
- The master oscillator generates the initial laser pulse.
- The power amplifier increases laser energy.
- The pulse width controller adjusts laser characteristics.
- The galvanometer system directs the laser beam.
- The focused laser interacts with the material surface.
By changing pulse width and frequency, MOPA laser can achieve different surface effects:
- Color oxidation marking
- Black marking
- White marking
- Deep engraving
- Surface texturing
Core Advantages Of MOPA Laser Marking Machine
Advantages Of MOPA Laser Marking Machine
1. Color Laser Marking Capability
MOPA laser can create different colors
on stainless steel surfaces by controlling
oxidation effects.Common colors:
✓ Black
✓ Blue
✓ Gold
✓ Red
✓ Green
2. Black Marking On Aluminum
MOPA laser produces deep black marks
on anodized aluminum without damaging
the surface.Applications:
Electronics
Mobile phone parts
Aerospace components
3. Precision Electronic Marking
Suitable for:
PCB
IC chips
Semiconductor components
Connectors
4. Adjustable Processing Parameters
Different materials can use different pulse width, frequency and power settings.
5. Excellent Surface Quality
Produces:
✓ Smooth marking
✓ High contrast
✓ Minimal heat impact
6. Wide Industrial Applications
Used in:
Automotive
Electronics
Medical
Jewelry
Hardware
MOPA Laser Marking Machine Technical Specifications
MOPA Laser Marking Machine Specifications
| Parameter | Specification |
|---|---|
| Laser Type | MOPA Fiber Laser |
| Wavelength | 1064nm |
| Power Options | 20W / 30W / 50W / 60W |
| Pulse Width | Adjustable |
| Frequency Range | 1kHz-4000kHz |
| Marking Speed | Up to 10000mm/s |
| Accuracy | ±0.005mm |
| Laser Lifetime | More than 100,000 hours |
Which MOPA Power Should You Buy?
Here is how we normally approach the decision with customers.
For Fine & General Marking
- Fine logos and text
- Black marking
- Anodized aluminum
- Thin metal applications
- Smaller production volumes
Choose 20W when you do not need aggressive material removal but want the flexibility of a MOPA source.
The Practical Middle Option
- General metal marking
- Black marking
- Serial numbers
- QR codes
- Higher production demand
30W is often a practical compromise between processing capability and machine cost.
For Higher Throughput & Deeper Work
- Higher production volume
- Deeper engraving
- Metal tooling
- Hardware components
- Industrial applications
50W becomes more attractive when production throughput or material removal is more important than the lowest purchase price.

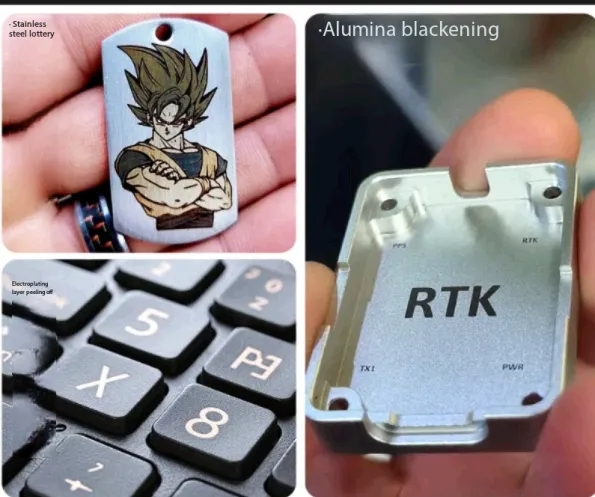

What Can a MOPA Laser Mark?
The best way to evaluate a laser is to start from the actual part, material and marking requirement.
Stainless Steel
Black marks, logos, serial numbers, QR codes and selected surface-color applications.
Anodized Aluminum
Remove the anodized layer to create high-contrast product identification, text and graphics.
Automotive Parts
Part numbers, serial numbers, traceability codes and permanent identification.
Electronics
Small components, housings, connectors and identification marks where controlled heat input can be important.
Tools & Hardware
Brand logos, model numbers, specifications and permanent identification on metal products.
Jewelry & Fine Products
Fine text, graphics, logos and customized markings on suitable metal surfaces.

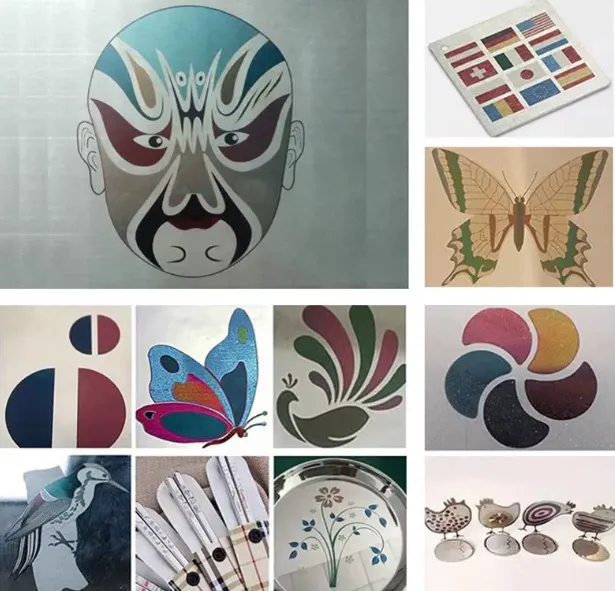

MOPA Laser Color Marking Stainless Steel
Advanced Color Laser Marking Solution For Stainless Steel Products
One of the biggest advantages of MOPA Laser Marking Machine is its ability to create colorful marks on stainless steel without using ink, paint or additional materials.
By precisely controlling pulse width, frequency and laser energy, MOPA laser creates controlled oxidation layers on stainless steel surfaces. This process produces different colors while maintaining the original material quality.
Available Stainless Steel Marking Colors:
Black Marking
High contrast black marking for logos, serial numbers and product identification.
Blue Marking
Popular for decorative products, premium metal accessories and customized items.
Golden Marking
Creates premium appearance for luxury products.
Red & Green Marking
Suitable for creative designs, art products and special identification.
Applications Of Stainless Steel Color Laser Marking:
- Kitchenware and stainless steel products
- Jewelry and accessories
- Medical instruments
- Luxury packaging
- Automotive components
- Consumer electronics
Black Marking Aluminum With MOPA Laser
High Contrast Black Marking Solution For Anodized Aluminum
Traditional fiber laser systems often have difficulty creating deep black marks on aluminum.However, MOPA Fiber Laser Marking Machine can achieve high contrast black marking on anodized aluminum surfaces.
Why MOPA Laser Is Ideal For Aluminum?
- Adjustable pulse width controls heat input
- Creates smooth black surface effects
- Maintains aluminum surface integrity
- Suitable for precision components
| Application | Traditional Fiber Laser | MOPA Fiber Laser |
|---|---|---|
| Black marking aluminum | Limited effect | Excellent black contrast |
| Surface damage | Higher possibility | Lower heat impact |
| Fine electronic parts | Good | Excellent |
| Premium appearance products | Average | Excellent |

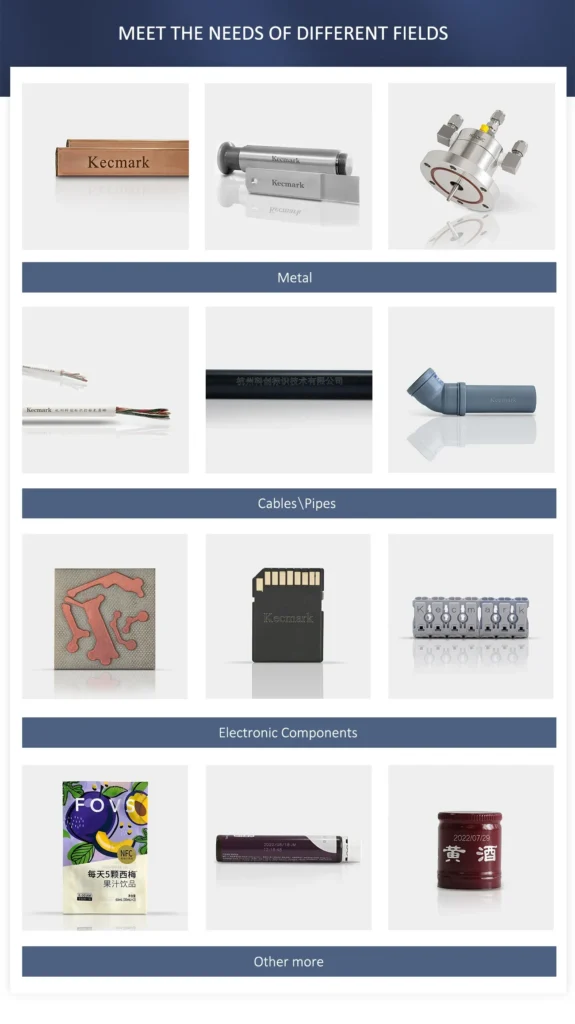

Materials Compatible With MOPA Laser Marking Machine
Wide Range Of Industrial Materials
MOPA laser technology provides excellent flexibility for different industrial materials.It is especially suitable for materials requiring high precision and high appearance quality.
Stainless Steel
Marking effects:
✓ Color marking
✓ Black marking
✓ Logo engraving
✓ Serial numbers
Aluminum
Applications:
✓ Anodized aluminum
✓ Electronics housing
✓ Aerospace parts
✓ Nameplates
Plastic Materials
Suitable for:
✓ ABS
✓ PC
✓ PVC
✓ Engineering plastics
Titanium & Metal Alloys
Applications:
✓ Medical devices
✓ Aerospace components
✓ Precision parts
Electronic Components
Ideal for:
✓ PCB
✓ Chips
✓ Connectors
✓ Sensors
Jewelry Materials
Used for:
✓ Gold
✓ Silver
✓ Stainless steel jewelry
MOPA Laser Marking Machine Applications
Applications Of MOPA Laser Marking Machine
Because of its adjustable pulse width technology, MOPA laser marking systems are widely used in industries requiring precision, traceability and premium appearance.
1. Electronics Industry
Applications:
• Mobile phone components
• PCB boards
• Semiconductor parts
• Connectors
Advantages:High precision,
minimal heat damage,
permanent identification.
2. Automotive Industry
Applications:
• Engine parts
• VIN codes
• Metal components
• Sensors
Advantages:Permanent traceability
and high durability.
3. Medical Industry
Applications:
• Surgical instruments
• Medical devices
• Stainless steel tools
Advantages:High contrast,
clean marking,
chemical resistance.
4. Jewelry Industry
Applications:
• Rings
• Bracelets
• Customized jewelry
Advantages:Fine details,
personalized designs.
5. Hardware Industry
Applications:
• Tools
• Bearings
• Metal parts
Advantages:Fast processing
and permanent marks.
6. Consumer Products
Applications:
• Premium gifts
• Kitchen products
• Smart devices
Advantages:Improves product appearance.
MOPA Fiber vs Standard Fiber Laser
MOPA is a process-control option, not a universal replacement for standard fiber laser marking.
| Factor | Standard Fiber | MOPA Fiber |
|---|---|---|
| General Metal Marking | Excellent | Excellent |
| Pulse Parameter Flexibility | Lower | Higher |
| Black Marking | Application dependent | Strong candidate |
| Anodized Aluminum | Suitable | Often preferred |
| Purchase Cost | Usually lower | Usually higher |
| Best Reason to Buy | Reliable general marking | More process flexibility |
MOPA Laser Marking Machine vs UV Laser Marking Machine
Which Laser Marking Machine Is Better For Precision Applications?
MOPA Laser Marking Machine vs UV Laser Marking Machine
Both MOPA laser and UV laser marking machines are precision laser processing technologies. However, they are designed for different applications.MOPA laser focuses on flexible metal processing, color marking and surface modification, while UV laser focuses on cold marking of sensitive materials.
| Comparison | MOPA Fiber Laser | UV Laser |
|---|---|---|
| Laser Wavelength | 1064nm | 355nm |
| Main Technology | Adjustable pulse fiber laser | UV photochemical laser |
| Color Stainless Steel Marking | ★★★★★ | ★★★ |
| Black Aluminum Marking | ★★★★★ | ★★ |
| Plastic Precision Marking | ★★★★ | ★★★★★ |
| Metal Engraving | ★★★★★ | ★★ |
| Typical Industries | Automotive, electronics, hardware, jewelry | PCB, medical, glass, precision plastics |
MOPA Laser Marking Machine Configuration Options
Customized Laser Marking Solutions For Different Industries
MOPA Laser Marking Machine Configuration Options
Different customers require different marking effects, production speeds and automation levels.We provide customized MOPA laser systems according to application requirements.
| Configuration | Available Options | Recommended Application |
|---|---|---|
| Laser Power | 20W 30W 50W 60W 100W | Fine marking, deep engraving, industrial production |
| Working Area | 70×70mm 110×110mm 175×175mm 200×200mm 300×300mm | Small components to large products |
| Laser Source Options | JPT MOPA Raycus MOPA IPG MOPA | Different budget and performance requirements |
| Optional Functions | Rotary Device Auto Focus Vision Camera Fume Extractor | Automation and special products |
| Machine Structure | Desktop Type Portable Type Integrated Production Line | Different factory environments |
A Technical Point Buyers Often Miss
You may see a laser marking machine advertised with a speed of 7,000 mm/s or even higher. That number is normally the rated scanning speed of the galvo system.
It does not mean that every product can be marked at 7,000 mm/s with the same quality.
Actual marking time depends on the material, text or QR-code content, hatch spacing, line count, marking area, lens, scanner and laser parameters.
For production purchasing, we recommend asking for a real sample test instead of comparing machines only by the maximum scanning speed.
Industrial MOPA Fiber Laser Marking System Parameters
MOPA Laser Marking Machine Technical Specifications
| Parameter | Specification |
|---|---|
| Laser Type | MOPA Fiber Laser |
| Laser Wavelength | 1064nm |
| Laser Power | 20W / 30W / 50W / 60W / 100W |
| Pulse Width | Adjustable 1ns-350ns |
| Frequency Range | 1kHz-4000kHz |
| Marking Speed | Up to 10000mm/s |
| Position Accuracy | Approximately ±0.005mm |
| Cooling Method | Air Cooling |
| Software Support | EZCAD / Compatible Laser Software |
| Service Life | 100,000+ hours laser source life |
| Supported Files | AI, DXF, PLT, BMP, JPG, PNG |
20W vs 30W vs 50W MOPA: Which One Should You Buy?
Higher power does not automatically mean better marking. The correct choice depends on your marking speed, material, required depth and production volume.
| Model | Typical Use | When It Makes Sense |
|---|---|---|
| 20W MOPA | Fine marking and general applications | When marking depth is not the main requirement and the application benefits from MOPA parameter control. |
| 30W MOPA | General industrial production | A practical middle option when productivity and process flexibility both matter. |
| 50W MOPA | Higher productivity and deeper applications | When production volume, processing speed or deeper engraving requirements justify the additional power. |
Before choosing the wattage: Tell us your material, marking size, marking content, required depth, daily production volume and target cycle time. These details are more useful for machine selection than choosing a wattage first.
Real Industrial Application Cases
MOPA Laser Marking Machine Application Cases
MOPA laser technology helps manufacturers achieve higher product value, better traceability and premium appearance.
Electronic Component Manufacturer
Requirement:Fine marking without damaging components.
Solution:30W MOPA fiber laser.
Result:Clear identification,
high precision,
minimal heat effect.
Stainless Steel Product Factory
Requirement:Create colorful logos on stainless steel.
Solution:MOPA color laser marking system.
Result:Premium appearance
without paint or coating.
Automotive Parts Manufacturer
Requirement:Permanent tracking codes.
Solution:50W MOPA laser marker.
Result:Durable,
high-speed production marking.
Medical Equipment Factory
Requirement:High contrast marking on stainless tools.
Solution:Precision MOPA laser system.
Result:Permanent,
clean,
chemical-resistant marks.
MOPA Laser Marking Machine Supplier Comparison
MOPA Laser Marking Machine Manufacturer Comparison
| Comparison | Professional Laser Factory | Trading Company | Large Brand Distributor |
|---|---|---|---|
| Customization Ability | ★★★★★ | ★★★ | ★★★ |
| Factory Direct Price | ★★★★★ | ★★ | ★★ |
| Technical Support | ★★★★★ | ★★★ | ★★★★ |
| Application Testing | Material testing available | Limited | Usually charged |
| After Sales Service | Direct engineer support | Depends on supplier | Higher service cost |
Why Choose Our MOPA Laser Marking Machine?
Professional Laser Manufacturing
Specialized in industrial laser marking solutions for global customers.
Strict Quality Inspection
Each machine is tested before shipment to ensure stability and reliability.
Customized Solutions
We provide solutions based on:
Material
Production speed
Application requirements
Global Export Experience
Supporting international customers with professional service.
What Should Be Written in the Quotation?
Do not purchase a MOPA machine based only on “20W / 30W / 50W”. Ask for the complete configuration.
Brand, complete model, wavelength, power, frequency, pulse width, M², warranty and serial number.
Brand, model, aperture, response time, rated speed and compatible wavelength.
Focal length, working distance, marking area, brand and optical specification.
Control card model, EZCAD version, USB/network interface, MOPA compatibility and software license.
If cylindrical products need marking, confirm chuck/roller type, diameter range and marking length.
Confirm enclosure type, interlock, exhaust/filter configuration and whether the machine is intended for enclosed operation.
Why Can Two “30W MOPA” Machines Have Very Different Prices?
The laser source is only one part of the complete machine.
| Option | Typical FOB Reference | What Changes? |
|---|---|---|
| Rotary Axis | USD 80–350 | Chuck/roller, diameter, length and precision |
| Full Enclosure | USD 300–1,500+ | Enclosure, interlock and exhaust configuration |
| Larger Field Lens | USD 40–300 | 150/200/300/400 mm marking area options |
| Exhaust / Filter | USD 120–800+ | Fan, filter and application-specific smoke treatment |
| Automatic Fixture / Vision | USD 500–8,000+ | Fixture, camera, scanner, PLC and data interface |
MOPA Laser Machine Buying & Acceptance Checklist
Before paying the balance, check the machine against the actual quotation and tested sample.
One practical rule: If a supplier cannot clearly provide the complete laser-source model, scanner model, lens configuration and sample result, do not compare the quotation only by wattage and price.
MOPA Laser Marking Machine FAQ
What is a MOPA fiber laser marking machine?
A MOPA fiber laser marking machine uses a MOPA-type pulsed fiber laser source with adjustable pulse-related parameters. It is commonly considered for applications requiring more process flexibility than a conventional fiber source.
Is MOPA better than a standard fiber laser?
Not automatically. Standard fiber is often sufficient for common metal marking. MOPA becomes more useful when the application benefits from additional pulse and frequency control.
Can a MOPA laser mark stainless steel?
Yes. MOPA fiber lasers are commonly used for stainless steel marking, including black marking and selected surface-effect applications. Final results depend on the stainless steel grade and process parameters.
What is the difference between 20W, 30W and 50W MOPA?
20W is suitable for many fine and general marking applications. 30W provides a practical balance for general industrial work. 50W is more suitable when higher throughput or deeper material removal is required.
How much does a MOPA laser marking machine cost?
Typical market/FOB reference ranges in the supplied research are about USD 1,300–2,400 for 20W, USD 1,600–2,800 for 30W and USD 2,200–4,800 for 50W. Actual pricing depends on the laser source, lens, marking area, rotary axis, enclosure, automation and shipping terms.
Can you test our material before we buy?
Yes. Sample testing is recommended when the required marking appearance, contrast, depth or heat effect is important.
How To Choose A MOPA Laser Marking Machine
Choosing the correct MOPA laser system depends on your material, production requirements and marking effect.
1. Identify Your Material
Different materials require different laser parameters.
| Material | Recommended Solution |
|---|---|
| Stainless Steel Color Marking | MOPA Fiber Laser |
| Black Aluminum Marking | MOPA Fiber Laser |
| PCB Components | MOPA / UV Laser |
| Plastic Precision Marking | MOPA or UV Laser |
| Deep Metal Engraving | High Power MOPA Laser |
2. Select Suitable Laser Power
- 20W-30W: Small products and precision marking
- 50W: General industrial applications
- 60W-100W: High efficiency production
3. Consider Automation Requirements
For mass production, consider adding:
- Rotary axis
- Automatic loading system
- Vision positioning
- Production line integration
Technical Notes & Data Sources
The technical specifications and market reference information on this page are compiled from publicly available laser-source, control-system and laser-equipment documentation.
Laser-source specifications may vary by exact model. Before ordering, customers should confirm the complete laser model, scanner, F-theta lens, control card, software version and final machine configuration in the quotation.
Price ranges shown on this page are market/typical FOB references for comparison and are not guaranteed quotations.
