High Precision UV Laser Marking Solution For PCB Boards, Electronic Components And Product Traceability
Jining Junqi (JQ) Laser provides professional PCB UV laser marking machines designed for electronics manufacturers requiring permanent, high-resolution and damage-free marking.
Explore UV Laser Marking MachineTable of Contents
What Is A PCB UV Laser Marking Machine?
A PCB UV laser marking machine is a precision laser system designed for marking printed circuit boards (PCB), electronic components and sensitive materials.
Unlike traditional printing methods such as ink printing, labels or mechanical engraving, UV laser marking uses a high-energy ultraviolet laser beam to create permanent marks directly on the product surface.
The short wavelength of UV laser technology allows extremely fine processing with minimal heat generation, making it especially suitable for electronic products where precision and reliability are critical.
PCB manufacturers commonly use UV laser marking machines for:
- PCB serial number marking
- QR code and barcode marking
- Component identification
- Brand logo marking
- Production date marking
- Traceability information
Compared with fiber laser marking machines, UV laser systems provide a “cold marking” process that reduces thermal damage to sensitive electronic materials.
Why Use UV Laser Marking Machine For PCB?
PCB manufacturing requires extremely accurate identification without damaging circuit structures. Traditional marking methods often have limitations:
| Marking Method | Problems | UV Laser Advantage |
|---|---|---|
| Ink Printing | Ink wear, contamination, limited durability | Permanent marking without consumables |
| Label Stickers | Peeling, aging, additional process | Direct marking on PCB surface |
| Mechanical Engraving | Physical damage and low precision | Non-contact processing |
| Fiber Laser | Higher heat effect on sensitive materials | Lower thermal impact |
Main Features Of PCB UV Laser Marking Machine
1. Ultra Fine Marking Accuracy
UV laser wavelength enables extremely small and detailed marks, suitable for micro QR codes, small characters and electronic identification.
2. Low Heat Processing
The cold marking process minimizes thermal damage to PCB materials and sensitive components.
3. Permanent Traceability Marking
Laser marks remain readable throughout product life cycles, supporting industrial tracking requirements.
4. High-Speed Production Capability
UV laser systems can integrate with automated production lines for electronics manufacturing.

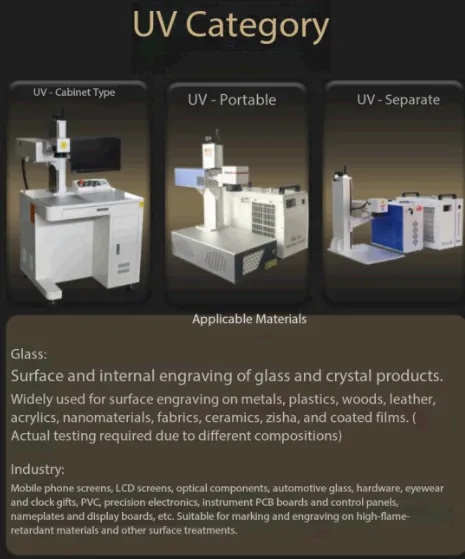

PCB UV Laser Marking Machine Specifications
| Laser Type | UV Laser |
| Laser Wavelength | 355nm |
| Available Power | 3W / 5W / 10W |
| Marking Speed | Up to 12000mm/s |
| Marking Accuracy | High precision industrial marking |
| Cooling System | Air cooling / water cooling depending configuration |
PCB UV Laser Marking Machine Applications
PCB manufacturers need permanent identification solutions throughout the entire product lifecycle.From raw PCB production to final electronic assembly, UV laser marking provides reliable product identification, quality control and traceability.
A PCB UV laser marking machine is widely used in the following applications:
PCB Serial Number Marking
Manufacturers use UV laser marking to create unique serial numbers for tracking each PCB during production, inspection and after-sales service.
PCB QR Code Marking
High-resolution QR codes allow manufacturers to store production data, inspection records and supply chain information.
PCB Barcode Marking
UV laser technology produces clear and readable barcodes suitable for automated scanning systems.
PCB Logo Marking
Electronic manufacturers use UV lasers to mark company logos, product models and certification information.

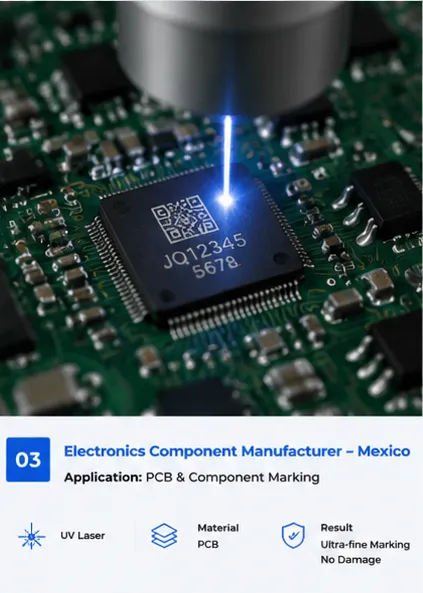

Electronic Component Identification
Small components require precise marking without affecting electrical performance.
Anti-Counterfeiting Marking
Permanent laser marks help protect electronic products against unauthorized copying.
Materials That Can Be Marked By PCB UV Laser Marking Machine
Materials That Can Be Marked By PCB UV Laser Marking Machine
UV laser marking technology is suitable for many electronic materials because of its low thermal effect and high precision.
| Material | Application | UV Laser Advantage |
|---|---|---|
| PCB Boards | Serial numbers, QR codes, logos | High precision without circuit damage |
| FR4 Material | PCB identification | Clear contrast marking |
| Plastic Electronic Housing | Product information | No cracking or deformation |
| Silicon Components | Micro identification | Fine processing capability |
| Electronic Connectors | Part numbers and traceability | Permanent marking |
For more material solutions:
Explore Laser Marking Materials GuidePCB QR Code Laser Marking For Product Traceability
Modern electronics manufacturing requires complete product tracking. A PCB QR code allows manufacturers to connect physical products with digital information.
Using a PCB UV laser marking machine, manufacturers can permanently mark:
- Production date
- Manufacturing location
- Batch number
- Inspection results
- Component information
- Repair history
Compared with printed labels, laser-marked QR codes offer better durability because they are directly created on the PCB surface.
Benefits Of PCB Laser Traceability
- Reduce product tracking errors
- Improve quality management
- Support automated production systems
- Increase manufacturing transparency
- Meet industry compliance requirements
Related solution: Product Traceability Solution
UV Laser Marking Machine VS Fiber Laser Marking Machine For PCB
Both UV laser and fiber laser systems are widely used in industrial marking. However, PCB applications usually require higher precision and lower heat impact.
| Comparison | UV Laser Marking Machine | Fiber Laser Marking Machine |
|---|---|---|
| Wavelength | 355nm | 1064nm |
| Heat Effect | Very low | Higher |
| PCB Application | Excellent | Limited |
| Fine Marking | Excellent | Good |
| Metal Marking | Suitable | Excellent |
| Best Applications | PCB, plastic, electronics | Metal parts, tools, industrial products |
For PCB and sensitive electronic components, UV laser marking machines are usually the preferred choice due to their precision and cold processing characteristics.
PCB Laser Marking Solution For Electronics Manufacturers
Electronic manufacturers have different requirements depending on production volume, product type and automation level.
| Production Requirement | Recommended Solution |
|---|---|
| Small PCB Batch Production | Standard UV Laser Marking Machine |
| Large Electronics Factory | Automatic UV Laser Marking System |
| PCB QR Code Tracking | UV Laser + Vision Positioning System |
| High Precision Micro Marking | High Accuracy UV Laser System |
Jining Junqi (JQ) Laser can customize PCB laser marking solutions according to customer production requirements.
Advantages Of PCB UV Laser Marking Machine
For electronics manufacturers, choosing the right marking technology directly affects product quality, production efficiency and traceability management. Compared with traditional marking methods, PCB UV laser marking machines provide several important advantages.
1. High Precision Micro Marking
PCB products usually contain small components and limited marking areas. The 355nm UV laser wavelength allows manufacturers to create small characters, detailed logos and micro QR codes with excellent clarity.
2. Minimal Thermal Damage
Electronic components are sensitive to heat. UV laser marking uses a photochemical process that reduces heat influence compared with traditional infrared laser systems.
3. Permanent Identification
Laser marks are permanent and resistant to wear, chemicals and environmental conditions. This makes them ideal for long-term product tracking.
4. No Consumables Required
Unlike ink printing, laser marking does not require ink, solvents or labels, reducing operating costs.
5. Easy Automation Integration
PCB UV laser marking machines can integrate with conveyors, robotic arms, cameras and production management systems.
6. Environmentally Friendly Processing
Laser marking produces no ink waste and supports cleaner electronics manufacturing processes.
How To Choose The Right UV Laser Power For PCB Marking?
UV laser marking machines are commonly available in 3W, 5W and 10W configurations.The correct power depends on marking speed, material type and production requirements.
| UV Laser Power | Recommended Application | Suitable Users |
|---|---|---|
| 3W UV Laser Marking Machine | Fine marking, small PCB batches, precision components | Research, small electronics manufacturers |
| 5W UV Laser Marking Machine | General PCB production, QR codes, serial numbers | Most electronics factories |
| 10W UV Laser Marking Machine | High-speed production and larger marking requirements | Large-scale manufacturing |
For most PCB manufacturers, a 5W UV laser marking machine provides a good balance between precision, speed and investment cost.
Industries Using PCB UV Laser Marking Machines
PCB laser marking technology is widely used across different electronics manufacturing industries.
| Industry | Typical Marking Applications |
|---|---|
| Consumer Electronics | Smartphones, tablets, electronic devices identification |
| Automotive Electronics | ECU boards, sensors, electronic modules |
| Medical Electronics | Medical devices and electronic components traceability |
| Semiconductor Industry | Chip identification and component marking |
| Communication Equipment | Network devices, connectors and modules |
| Industrial Control Equipment | Control boards and electrical components |
Why Choose Jining Junqi (JQ) Laser For PCB UV Laser Marking?
Selecting a reliable laser manufacturer is important for electronics companies because marking quality directly affects production traceability and product appearance.

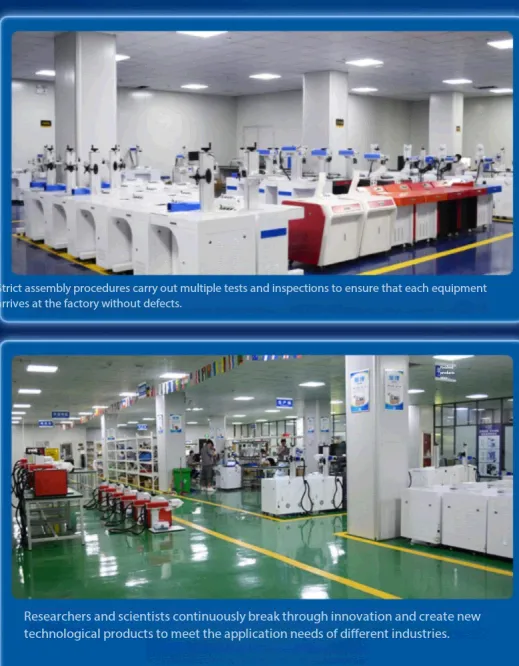

Industrial Laser Manufacturing Experience
Jining Junqi (JQ) Laser specializes in industrial laser marking solutions, including UV laser, fiber laser and CO2 laser systems.
Professional Application Support
Our engineers help customers select suitable laser parameters according to PCB materials, marking requirements and production conditions.
Customized Production Solutions
We provide customized solutions including rotary marking, vision positioning and automated production integration.
Global Export Service
JQ Laser provides laser marking equipment solutions for customers worldwide with technical support and application guidance.
JQ Laser VS Other PCB Laser Marking Machine Suppliers
| Comparison | Jining Junqi (JQ) Laser | General Suppliers |
|---|---|---|
| Application Testing | Available before purchase | Limited |
| Customized Solutions | Support automation and special requirements | Mostly standard machines |
| Technical Support | Professional engineering support | Basic service |
| Industrial Applications | Designed for factory production | Depends on supplier |
Frequently Asked Questions About PCB UV Laser Marking Machine
1. What is a PCB UV Laser Marking Machine?
A PCB UV Laser Marking Machine is a precision laser system designed for marking printed circuit boards, electronic components and sensitive materials. It uses a 355nm ultraviolet laser beam to create permanent identification marks with minimal heat impact.
2. Why is UV laser marking suitable for PCB boards?
UV laser marking is suitable for PCB because it provides high precision, low thermal damage and excellent marking quality. It can create small characters, QR codes and serial numbers without damaging sensitive electronic components.
3. Can UV laser marking machines mark QR codes on PCB?
Yes. PCB UV laser marking machines are widely used for QR code, barcode and Data Matrix marking. These codes can store production information and support product traceability systems.
4. What laser power is recommended for PCB marking?
Most PCB manufacturers choose 5W UV laser marking machines because they provide a good balance between marking speed, precision and cost. 3W models are suitable for fine marking, while 10W models are recommended for higher production requirements.
5. What materials can a PCB UV laser marking machine mark?
PCB UV laser marking machines can mark PCB boards, FR4 materials, electronic plastics, silicon components, connectors and other sensitive electronic materials.
6. What is the difference between UV laser and fiber laser for PCB marking?
UV lasers use a 355nm wavelength and create less heat, making them more suitable for PCB and electronic components. Fiber lasers are usually better for metal marking applications.
7. Does laser marking damage PCB circuits?
When properly configured, UV laser marking produces controlled energy output and minimizes thermal influence, making it suitable for PCB identification without affecting circuit performance.
8. Can PCB UV laser marking machines connect with production lines?
Yes. Industrial PCB UV laser marking machines can integrate with automation systems, conveyor lines, cameras and MES traceability systems.
9. How long does a UV laser marking machine last?
A professional industrial UV laser marking system can provide many years of stable operation when properly maintained. Service life depends on laser source quality, operating environment and usage conditions.
10. How much does a PCB UV Laser Marking Machine cost?
The price of a PCB UV Laser Marking Machine depends on laser power, configuration, automation requirements and application specifications. Standard industrial systems usually range from several thousand dollars to higher levels for customized production solutions.
Need A PCB UV Laser Marking Solution?
Jining Junqi (JQ) Laser provides professional UV laser marking machines for PCB manufacturers, electronics factories and industrial automation applications.
Send your PCB sample and marking requirements. Our engineers will recommend the most suitable laser solution.
Request A Free Test
